6. Quantization
Goals
At the end of this tutorial you will be able to:
- Use quantization interfaces in
torch_to_nnef - Define your own quantization library on top of
torch_to_nnef
Prerequisite
- PyTorch and Python basics
- Understanding of what is quantization for Neural network
- 10 min to read this page

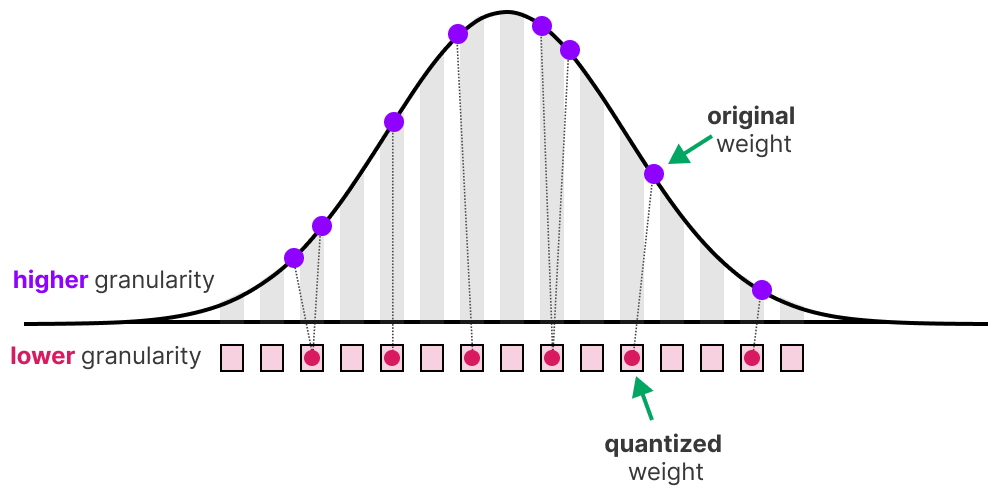

Quantization is a set of techniques that allow to reduce significantly the model size, and in case of memory-bound computations during model inference: speed up model as well. These techniques reduce the 'size' needed to store the numerical values representing the parameters of the neural network.
In order to make those techniques efficient, the inference engine that runs the neural network needs to have in most cases, specific kernels to support the quantization scheme selected.
torch_to_nnef primary support today being tract, the quantization
presented here are all targeting this inference engine.
To date tract support 2 kind of quantization:
- Q40: almost identical to GGUF Q40, it targets weights only (not activations) where matmul and embedding/gathering operations, transform those into float activations.
- 8 bit asymmetric per tensor quantization built-in in PyTorch that can target weights and activations and allow integer only arithmetic
Let's take a look at each in turn starting by Q40.
Custom Tensor quantization support
Q40 LLM Export example
For LLM as we explained in prior tutorial quantization is as simple as
adding the -c (or --compression-method) option with min_max_q4_0_all.
t2n_export_llm_to_tract \
-s "meta-llama/Llama-3.2-1B-Instruct" \
-dt f16 \
-f32-attn \
-e $HOME/llama32_1B_q40 \
--dump-with-tokenizer-and-conf \
--tract-check-io-tolerance ultra \
-c "min_max_q4_0_all"
It should take around the same time to export (quantization time being compensated by less content to dump on disk).
Ok that's nice, but where does this registry come from ?
The registry location is defined with the --compression-registry which by default
point to:
-
torch_to_nnef.compress.DEFAULT_COMPRESSIONmodule-attributeDEFAULT_COMPRESSION = {'min_max_q4_0': quantize_weights_min_max_Q4_0, 'min_max_q4_0_with_embeddings': partial(quantize_weights_min_max_Q4_0, to_quantize_module_classes=(Linear, Embedding)), 'min_max_q4_0_with_embeddings_99': partial(partial(quantize_weights_min_max_Q4_0, percentile=0.99), to_quantize_module_classes=(Linear, Embedding)), 'min_max_q4_0_all': partial(quantize_weights_min_max_Q4_0, to_quantize_module_classes=(Linear, Embedding, Conv1d, Conv2d))}
Defining your own LLM quantization registry
Anyone can create a new registry as long as it follows those rules:
- accessible as a global variable dict
- with as key a string that reference the compression to apply
- as value a function that has the following signature:
def my_quantization_function(
model, # your torch.nn.Module / full model to be quantized
# huggingface tokenizer or equivalent
tokenizer,
# may be usefull to dump compression evaluations results
# or some specific metrics
export_dirpath,
# original trained model location
# may be usefull to perform internal evaluations of reference
# when more data than just llm torch is available
local_dir,
):
pass
A typical function will transform some model tensors (parameters, buffers, ...)
into torch_to_nnef.tensor.QTensor a concrete QTensor that supports NNEF export today being:
-
torch_to_nnef.tensor.quant.qtract.QTensorTractScaleOnlyBases:
QTensorTractTract data format it serializes to: Q4_0.
QTensor today only support export to Q40 (that means: 4bit symmetric quantization with a granularity per group of 32 elements, totaling 4.5bpw).
A QTensor is a Python object that behaves and should be used as a
classical torch.Tensor with few exceptions: it can not hold any gradient, it can not be modified, it contains internals objects necessary to its definition like:
- A blob of binary data (the compressed information) named
u8_blob - A
torch_to_nnef.tensor.quant.Qschemewhich define how to quantize/ dequantize the blob from u8 (like QScalePerGroupF16) - A list of U8Compressor that can act on the u8 blob and compress it further by for example applying bit-packing to it. Say each represented element is specified in 4 bit (16 value represented) without compressor we waste 4 bit per element because each element take 8bit (here we ignore the attached quantization information that add up to the size). Also Compressor are not necessary just bit-packing that can be any kind of classical compression algorithm (Huffman, Lzma, ...) as long as the compression is lossless.
Each access to the QTensor for torch operations will make it be decompressed on the fly saving RAM allocation when unused. This QTensor will also be identified by torch_to_nnef at export time and translated to requested .dat based on the specific method:
def write_in_file(
self,
dirpath: T.Union[str, Path],
label: str,
inference_target: InferenceTarget = TractNNEF.latest(),
):
pass
Each subclass will define how to dump it (for example for tract Q40).
The transformation from a float tensor to a Q40 QTensor can be done through
a step we call tensor quantization which may be as simple as
a min and max calibration as shown in the function fp_to_tract_q4_0_with_min_max_calibration, but all compatible techniques can be applied like GPTQ, AWQ, ...
(those are just not part of torch_to_nnef package which intend to just provide common primitive to be easily exportable).
A concrete example of my_quantization_function can be found compress module here.
Today Q40 is supported by tract on matmul, convolutions and embeddings operations.
The min_max_q4_0_all will try to apply it to all those encountered modules within a
model.
Q40 for non-llm network
By reading the previous section you should now understand that beyond specific calibration which is not part of this library all of what was explained apply to all neural network parameters used in matmul (nn.Linear, F.linear, ...), conv (Conv1d, Conv2d), and embeddings (gather operator). In fact you can just reuse as is the compress method we referenced upper on any neural network defined in PyTorch it should just work.
Q40 Use specific quantization method
Ok min-max is cool, but quality it provides in Q40 is bad, how do I implement my own quantization (even with prior sections, I feel confused) ?
Let's take an example step by step:
-
We will use Q40 so no need to redefine the QTensor nor the QScheme, we will just have to create a new tensor quantization function register
-
Let's create a custom register on our own module
super_quant.pywhere we will implement a scale grid search based on Mean Square Error calibration for the demo. -
we first copy almost same function as
quantize_weights_min_max_Q4_0and rename itquantize_weights_grid_mse_Q40and adapt it slightly
from functools import partial
import logging
import typing as T
import torch
from torch import nn
from torch_to_nnef.compress import offloaded_tensor_qtensor
from torch_to_nnef.exceptions import T2NErrorImpossibleQuantization
from torch_to_nnef.tensor.offload import OffloadedTensor
from torch_to_nnef.tensor.quant import QTensor
from torch_to_nnef.tensor.updater import ModTensorUpdater
LOGGER = logging.getLogger(__name__)
def fp_to_tract_q4_0_with_grid_mse_calibration(weight, grid_size=100, maxshrink=0.8):
# TODO: implementation
pass
def quantize_weights_grid_mse_Q40(model: nn.Module, **kwargs):
to_quantize_module_classes = kwargs.get(
"to_quantize_module_classes", (nn.Linear,)
)
assert isinstance(to_quantize_module_classes, tuple), (
to_quantize_module_classes
)
assert all(issubclass(_, nn.Module) for _ in to_quantize_module_classes), (
to_quantize_module_classes
)
with torch.no_grad():
ids_to_qtensor: T.Dict[int, T.Tuple[QTensor, OffloadedTensor]] = {}
""" try to avoid quant if used in other operators like mix of embedding/linear if linear only quant """
mod_tensor_updater = ModTensorUpdater(model)
for name, mod in model.named_modules():
if isinstance(mod, to_quantize_module_classes):
LOGGER.info(f"quantize layer: {name}")
weight_id = id(getattr(mod, "weight"))
if weight_id in ids_to_qtensor:
LOGGER.info(
f"detected shared weight between: '{ids_to_qtensor[weight_id].nnef_name}' and '{name}.weight'"
)
continue
if not all(
isinstance(m, to_quantize_module_classes)
for m in mod_tensor_updater.id_to_modules[weight_id]
):
clss = [
m.__class__
for m in mod_tensor_updater.id_to_modules[weight_id]
]
LOGGER.warning(
f"detected shared weight: '{name}' candidate has incompatible layer usage: {clss}, "
f" but requested {to_quantize_module_classes}"
)
continue
try:
def q_fn(weight):
q_weight = fp_to_tract_q4_0_with_grid_mse_calibration(
weight,
**{
k: v
for k, v in kwargs.items()
if k in ["grid_size"]
},
)
q_weight.nnef_name = f"{name}.weight"
return q_weight
q_weight = offloaded_tensor_qtensor(
q_fn, mod.weight, "q40_mse"
)
except T2NErrorImpossibleQuantization as exp:
LOGGER.error(f"quant layer: {name} error: {exp}")
continue
# => needs assignation next cause update_by_ref may create new Parameter object
q_weight = mod_tensor_updater.update_by_ref(
getattr(mod, "weight"), q_weight
)
ids_to_qtensor[id(q_weight)] = q_weight
return model
EXAMPLE_REGISTRY = {
"grid_mse_q4_0_all": partial(
quantize_weights_grid_mse_Q40,
grid_size=100,
to_quantize_module_classes=(
nn.Linear,
nn.Embedding,
nn.Conv1d,
nn.Conv2d,
),
),
}
Note here the use of ModTensorUpdater this module updater allows to avoid breaking shared reference to a common tensor inside your network (by example embedding layer shared between input and output of a LLM) while updating the weights.
We now just need to fill the fp_to_tract_q4_0_with_grid_mse_calibration function and we are done. Also note that I could have done a calibration stage with external data before end at the beginning (some quantization method need to minimize quantization error for activations). In this case we opt for simplicity:
from torch_to_nnef.tensor.quant import fp_to_tract_q4_0_with_min_max_calibration
def fp_to_tract_q4_0_with_grid_mse_calibration(
fp_weight, grid_size=50, maxshrink=0.8
):
qtensor = fp_to_tract_q4_0_with_min_max_calibration(fp_weight)
qscheme_min_max = qtensor.qscheme
lower_bound_search_vals = qscheme_min_max.scale * maxshrink
step_size = (qscheme_min_max.scale - lower_bound_search_vals) / grid_size
current_vals = qscheme_min_max.scale.clone()
best_vals = current_vals
def get_current_error():
return (
((fp_weight - qtensor.decompress()).abs() ** 2)
.view(-1, qscheme_min_max.group_size)
.mean(1)
)
best_val_error = get_current_error()
orignal_val_error = best_val_error.clone()
for _ in range(grid_size):
current_vals -= step_size
qtensor.qscheme.scale = current_vals.clone()
current_val_error = get_current_error()
better_error = current_val_error < best_val_error
best_val_error = torch.where(
better_error, current_val_error, best_val_error
)
best_vals = torch.where(
better_error.unsqueeze(1), current_vals, best_vals
)
gain_over_min_max = (orignal_val_error - best_val_error).mean()
LOGGER.info(
f"[{fp_weight.name}] quant grid search gained mse error from min/max: {gain_over_min_max}"
)
qtensor.qscheme.scale = best_vals
return qtensor
Ok now we can simply run the register we just created by pointing it out with arguments we stated in upper sections and observe the magic. Of course gain using this mse technique are modest, but you now have the full knowledge to make your
own super quant
.
8bit Post Training Quantization example
Quantization in 8bit including activation is something that is built-in PyTorch
since a while. This is great because it means this is as well represented in the
Intermediate representation after graph is traced, hence easily exportable with
torch_to_nnef. Still, today tract only support 8bit asymmetric linear quantization
per tensor (no per channel).
We will demonstrate this ability on a simple usecase:
Let's do a CNN + ReLU example and apply a classical PTQ from there:
from pathlib import Path
import torch
from torch import nn
from torch_to_nnef import TractNNEF, export_model_to_nnef
class Model(nn.Module):
def __init__(self) -> None:
super().__init__()
self.quant = torch.ao.quantization.QuantStub()
self.cnn1 = nn.Conv1d(10, 10, 3)
self.relu1 = nn.ReLU()
self.cnn2 = nn.Conv1d(10, 1, 3)
self.relu2 = nn.ReLU()
self.dequant = torch.ao.quantization.DeQuantStub()
def forward(self, x):
x = self.quant(x)
x = self.cnn1(x)
x = self.relu1(x)
x = self.cnn2(x)
x = self.relu2(x)
x = self.dequant(x)
return x
torch.backends.quantized.engine = "qnnpack"
m = Model()
m.eval()
m.qconfig = torch.ao.quantization.get_default_qconfig("qnnpack")
mf = torch.ao.quantization.fuse_modules(
m, [["cnn1", "relu1"], ["cnn2", "relu2"]]
)
mp = torch.ao.quantization.prepare(mf)
input_fp32 = torch.randn(1, 10, 15)
mp(input_fp32)
model_int8 = torch.ao.quantization.convert(mp)
res = model_int8(input_fp32)
file_path_export = Path("model_q8_ptq.nnef.tgz")
export_model_to_nnef(
model=model_int8,
args=input_fp32,
file_path_export=file_path_export,
inference_target=TractNNEF(
version="0.21.13",
check_io=True,
),
input_names=["input"],
output_names=["output"],
debug_bundle_path=Path("./debug.tgz"),
)
if you look at the model graph.nnef, there is no
difference with a classical NNEF model but .dat exported are uint8 and
a new textual file is set called graph.quant.
This new file contains quantization information for each tensors as follows:
"quant__input_quantize_per_tensor0": zero_point_linear_quantize(zero_point = 119, scale = 0.021, bits = 8, signed = false, symmetric = false);
"cnn1__input_weight": zero_point_linear_quantize(scale = 0.0014, zero_point = 0, bits = 8, signed = true, symmetric = false);
"cnn1__input_conv": zero_point_linear_quantize(scale = 0.0046, zero_point = 0, bits = 8, signed = false, symmetric = false);
"cnn1__input": zero_point_linear_quantize(scale = 0.0046, zero_point = 0, bits = 8, signed = false, symmetric = false);
"cnn2__Xq_weight": zero_point_linear_quantize(scale = 0.0013, zero_point = 0, bits = 8, signed = true, symmetric = false);
"cnn2__Xq_conv": zero_point_linear_quantize(scale = 0.0017, zero_point = 0, bits = 8, signed = false, symmetric = false);
"cnn2__Xq": zero_point_linear_quantize(scale = 0.00172, zero_point = 0, bits = 8, signed = false, symmetric = false);
Finally running tract cli on this model:
You should observe that operators are correctly understood as Quantized with QU8 notation:
input
┃ ━━━ 1,10,15,F32
┣ 1 Cast quant__input_quantize_per_tensor0
┃ ━━━ 1,10,15,QU8(Z:119 S:0.021361168)
┣┻┻┻┻┻┻┻┻ 9 Conv cnn1__input_conv_4
┃ ━━━ 1,10,13,QU8(Z:0 S:0.004661602)
┣┻ 11 Max cnn1__input_relu_y_5
┣┻┻┻┻┻┻┻┻ 16 Conv cnn2__Xq_conv_1
┃ ━━━ 1,1,11,QU8(Z:0 S:0.0017290331)
┣┻ 18 Max cnn2__Xq_relu_y_4
┣ 19 Cast output
━━━ 1,1,11,F32
Congratulation
You exported your first quantized network with torch_to_nnef in 8bit
and learned how to create and manage your own quantization registry !
