āš™ Internal design

Internals of torch to NNEF export are mostly segmented in 6 steps as shown bellow:

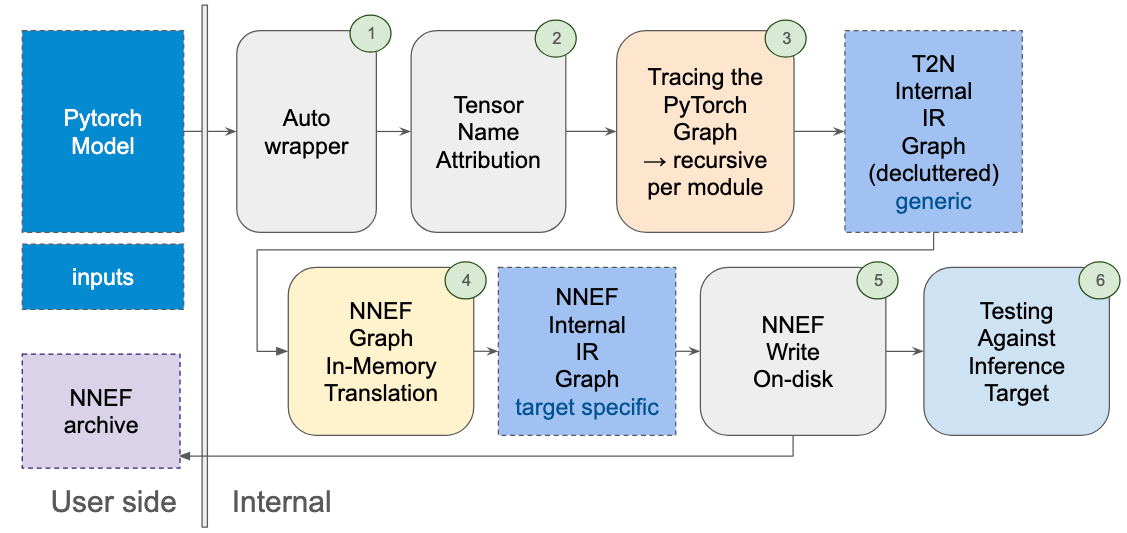

internal process schema
figure 1: Export internal process

Each of those steps have specific aims and goals.

  1. Aims to make sense of complex inputs and outputs such as dict, dict like object containing tensors or tensors inside containers in containers...
  2. Name each tensor after the module it is assigned to (if it's shared across multiple modules first name encountered will be retained)
  3. Trace the PyTorch Graph module by module starting from the provided model each sub-module call is solved after this module have been traced. each submodule is colapsed inside it's parent. This tracing build a specific internal representation (IR) in torch to nnef which is NOT torch graph but a simplified version of it that is no more tied to torch cpp internals and with removed useless operators for inference.
  4. Translate the torch to nnef internal IR into NNEF depending on inference target selected
  5. Save each tensor on disk in .dat and serialize the graph.nnef and graph.quant associated.
  6. Allow to perform a serie of test after NNEF model asset has been generated (typically checking output similarities)

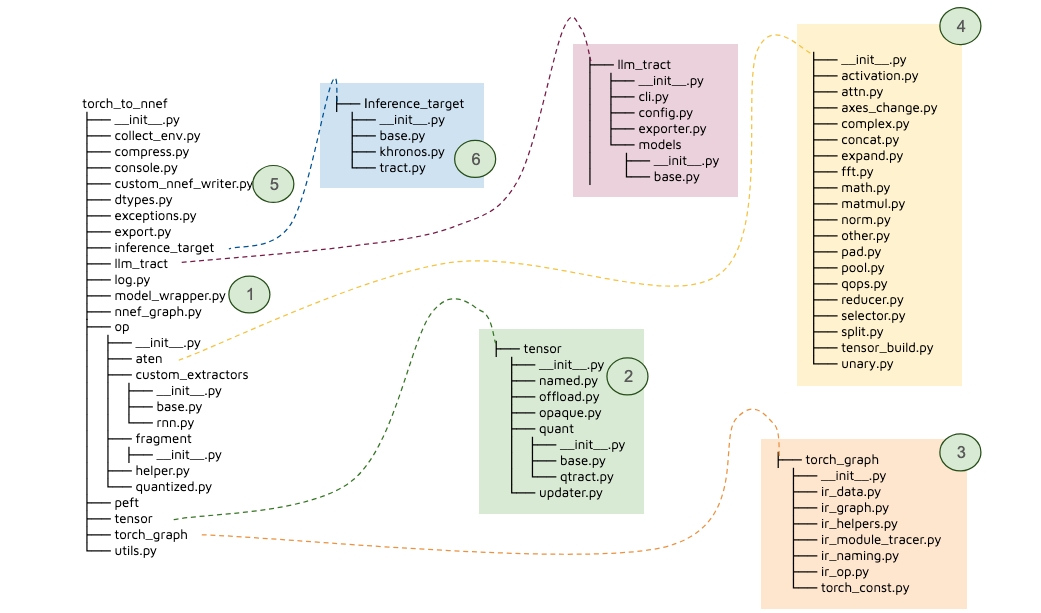

code structure
figure 2: code structure as of 2025-08 (nĀ° correspond to figure 1)

Note

These steps only apply to torch_to_nnef.export_model_to_nnef export function that exports the graph + the tensors. To observe those: setting log level to info for this lib is helpful, a proposed default logger is available in torch_to_nnef.log.init_log

1. Auto wrapper

The auto wrapper is available at torch_to_nnef.model_wrapper. In essence, this step tries hard to make sense of the input and output provided by the user as input parameters by 'flattening' and extracting from complex data-structures a proper list of tensor to be passed. Some example can be seen in our multi inputs/outputs tutorial. Still note that as of today the graph is traced statically with Python primitive constantized. Also raw objects passed in forward function are not supported yet (uncertainty about the order in which tensors found in it should be passed).

2. Tensor naming

This replaces each tensor in the graph (code can be found in torch_to_nnef.tensor.named) by a named tensor holding the name it will have in the different intermediate representations. This is helpful to keep consistent tensor naming between the PyTorch parameters/buffers name and NNEF archive we build. Allowing confident reference between the 2 worlds. In practice this tensor acts just like a classical torch.Tensor so it can even be used beyond torch_to_nnef usecase, if you want to name tensors.

3. Internal IR representation

While tracing the graph recursively you may debug its parsed representation as follows: let's imagine you set a breakpoint in torch_to_nnef.torch_graph.ir_graph.TorchModuleIRGraph.parse method you could call self.tracer.torch_graph to observe the PyTorch representation:

graph(%self.1 : __torch__.torchvision.models.alexnet.___torch_mangle_39.AlexNet,
      %x.1 : Float(1, 3, 224, 224, strides=[150528, 50176, 224, 1], requires_grad=0, device=cpu)):
  %classifier : __torch__.torch.nn.modules.container.___torch_mangle_38.Sequential = prim::GetAttr[name="classifier"](%self.1)
  %avgpool : __torch__.torch.nn.modules.pooling.___torch_mangle_30.AdaptiveAvgPool2d = prim::GetAttr[name="avgpool"](%self.1)
  %features : __torch__.torch.nn.modules.container.___torch_mangle_29.Sequential = prim::GetAttr[name="features"](%self.1)
  %394 : Tensor = prim::CallMethod[name="forward"](%features, %x.1)
  %395 : Tensor = prim::CallMethod[name="forward"](%avgpool, %394)
  %277 : int = prim::Constant[value=1]() # /Users/julien.balian/SONOS/src/torch-to-nnef/.venv/lib/python3.12/site-packages/torchvision/models/alexnet.py:50:0
  %278 : int = prim::Constant[value=-1]() # /Users/julien.balian/SONOS/src/torch-to-nnef/.venv/lib/python3.12/site-packages/torchvision/models/alexnet.py:50:0
  %input.19 : Float(1, 9216, strides=[9216, 1], requires_grad=0, device=cpu) = aten::flatten(%395, %277, %278) # /Users/julien.balian/SONOS/src/torch-to-nnef/.venv/lib/python3.12/site-packages/torchvision/models/alexnet.py:50:0
  %396 : Tensor = prim::CallMethod[name="forward"](%classifier, %input.19)
  return (%396)

self.printall() and observe the current torch to NNEF representation:

___________________________________[PyTorch JIT Graph '<class 'torchvision.models.alexnet.AlexNet'>']___________________________________
inputs: (AlexNet_x_1: torch.float32@[1, 3, 224, 224])

        Static Constants:
                int AlexNet_277 := 1
                int AlexNet_278 := -1

        Static Tensor:

        Blob TorchScript:

        List:

        TupleTensors:

        Directed Acyclic Graph:
                 None AlexNet_394 := prim::CallMethod<Sequential.forward>( AlexNet_x_1 )
                 None AlexNet_395 := prim::CallMethod<AdaptiveAvgPool2d.forward>( AlexNet_394 )
                 torch.float32 AlexNet_input_19 := aten::flatten( AlexNet_395, AlexNet_277, AlexNet_278 )
                 None AlexNet_396 := prim::CallMethod<Sequential.forward>( AlexNet_input_19 )

outputs: (AlexNet_396: None@None)
____________________________________________________________________________________________________

Since the process is recursive you can see this representation evolve as each submodule gets parsed.

Also if you want to learn more the representation data structure we use you can look at the torch_to_nnef.torch_graph.ir_data and torch_to_nnef.torch_graph.ir_op.

This step is crucial in order to get an accurate representation of the Graph. A lot of thing can go wrong and this interface with some internal part of PyTorch which aren't guarantied as stable. This is one of the reason we have a dedicated IR in torch_to_nnef. When code breaks in this part, a good understanding of PyTorch internals is often required, and due to the lack of documentation, reading their source code is necessary.

4. NNEF translation

This step is probably one that need the most code, but that's often rather straightforward. It's responsible to mapping between our internal representation and the NNEF graph. Adding a new operator is a rather simple process as long as the 2 engines (PyTorch and the inference target) share similar operator to composes. But since there are so much operators in PyTorch there is a lot of mapping to do. In some case when there is too much discrepancy between the engines it may be worth proposing to reify the operation in the targeted inference engine.

5. NNEF dump

This step is rather simple. It uses a modernized version of the dump logic proposed by Khronos group in their package nnef_tools, with few extensions around custom .dat format serialization (code is available here).
